MIKUNI CARBURETOR JETS - MAIN
$3.50 each

N102.221-30 Size 30
N102.221-32.5 Size 32.5
N102.221-35 Size 35
N102.221-37.5 Size 37.5
N102.221-40 Size 40
N102.221-42.5 Size 42.5
N102.221-45 Size 45
N102.221-47.5 Size 47.5
N102.221-50 Size 50
N102.221-52.5 Size 52.5
N102.221-55 Size 55
N102.221-57.5 Size 57.5
N102.221-60 Size 60
N102.221-62.5 Size 62.5
N102.221-65 Size 65
N102.221-67.5 Size 67.5
N102.221-70 Size 70
N102.221-72.5 Size 72.5
N102.221-75 Size 75
N102.221-77.5 Size 77.5
N102.221-80 Size 80
N102.221-82.5 Size 82.5
N102.221-85 Size 85
N102.221-87.5 Size 87.5
N102.221-90 Size 90
N102.221-92.5 Size 92.5
N102.221-95 Size 95
N102.221-97.5 Size 97.5
N102.221-100 Size 100
N102.221-102.5 Size 102.5
N102.221-105 Size 105
N102.221-107.5 Size 107.5
N102.221-110 Size 110
N102.221-112.5 Size 112.5
N102.221-115 Size 115
N102.221-117.5 Size 117.5
N102.221-120 Size 120
N102.221-122.5 Size 122.5
N102.221-125 Size 125
N102.221-127.5 Size 127.5
N102.221-130 Size 130
N102.221-132.5 Size 132.5
N102.221-135 Size 135
N102.221-137.5 Size 137.5
N102.221-140 Size 140
N102.221-142.5 Size 142.5
N102.221-145 Size 145
N102.221-147.5 Size 147.5
N102.221-150 Size 150
N102.221-152.5 Size 152.5
N102.221-155 Size 155
N102.221-157.5 Size 157.5
N102.221-160 Size 160
N102.221-162.5 Size 162.5
N102.221-165 Size 165
N102.221-167.5 Size 167.5
N102.221-170 Size 170
N102.221-172.5 Size 172.5
N102.221-175 Size 175
N102.221-177.5 Size 177.5
N102.221-180 Size 180
N102.221-182.5 Size 182.5
N102.221-185 Size 185
N102.221-187.5 Size 187.5
N102.221-190 Size 190
N102.221-195 Size 195
N102.221-200 Size 200
N102.221-205 Size 205
N102.221-210 Size 210
N102.221-215 Size 215
N102.221-220 Size 220
N102.221-230 Size 230
N102.221-240 Size 240
MIKUNI CARBURETOR JETS - PILOT
$3.50 each

N100.606-30 Size 30
N100.606-32.5 Size 32.5
N100.606-35 Size 35
N100.606-37.5 Size 37.5
N100.606-40 Size 40
N100.606-42.5 Size 42.5
N100.606-45 Size 45
N100.606-47.5 Size 47.5
N100.606-50 Size 50
N100.606-52.5 Size 52.5
N100.606-55 Size 55
N100.606-57.5 Size 57.5
N100.606-60 Size 60
N100.606-62.5 Size 62.5
N100.606-65 Size 65
N100.606-67.5 Size 67.5
N100.606-70 Size 70
N100.606-72.5 Size 72.5
N100.606-75 Size 75
N100.606-77.5 Size 77.5
N100.606-80 Size 80
N100.606-82.5 Size 82.5
N100.606-85 Size 85
N100.606-87.5 Size 87.5
N100.606-90 Size 90
N100.606-92.5 Size 92.5
N100.606-95 Size 95
N100.606-97.5 Size 97.5
N100.606-100 Size 100
N100.606-102.5 Size 102.5
N100.606-105 Size 105
N100.606-107.5 Size 107.5
N100.606-110 Size 110
N100.606-112.5 Size 112.5
N100.606-115 Size 115
N100.606-117.5 Size 117.5
N100.606-120 Size 120
N100.606-122.5 Size 122.5
N100.606-125 Size 125
N100.606-127.5 Size 127.5
N100.606-130 Size 130
N100.606-132.5 Size 132.5
N100.606-135 Size 135
N100.606-137.5 Size 137.5
N100.606-140 Size 140
N100.606-142.5 Size 142.5
N100.606-145 Size 145
N100.606-147.5 Size 147.5
N100.606-150 Size 150
N100.606-152.5 Size 152.5
N100.606-155 Size 155
N100.606-157.5 Size 157.5
N100.606-160 Size 160
MIKUNI CARBURETOR NEEDLE VALVE ARM SPRINGS
$3.50 each

730-03027 Size 65 gram
730-03033 Size 80 gram
730-03027-T Size 95 gram
730-03034 Size 95 gram ( Sea-Doo BN 46I only )
730-03027 Size 115 gram

MIKUNI CARBURETOR NEEDLES & SEATS
STANDARD
786-35015-1.5 $20.95 Size 1.5
786-35015-1.8 $20.95 Size 1.8
786-35015-2.0 $20.95 Size 2.0
786-35015-2.3 $20.95 Size 2.3
786-35015-2.5 $20.95 Size 2.5
MIKUNI CARBURETOR REBUILD KIT
MK-BN38/44-SPR $56.95 Super BN ( Square Body )
MK-BN38/44 $36.95 BN ( Round Body )
MK-BN44I-YAM $56.95 Yamaha I Body
MK-BN46I-SD $56.95 Sea-doo 951

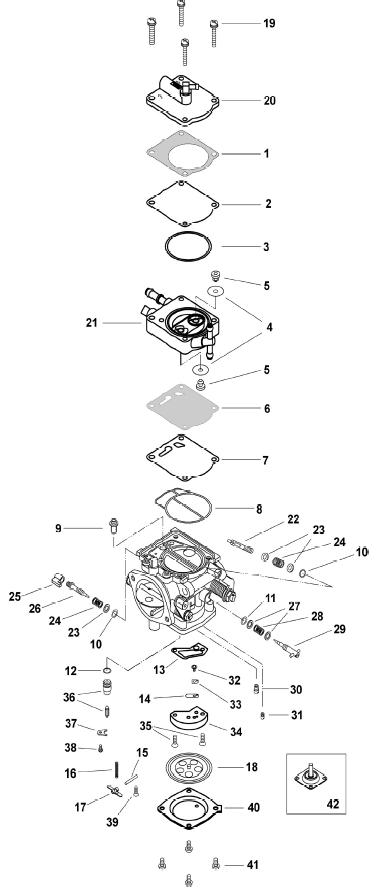

MIKUNI CARBURETOR PARTS
SUPER BN 46 I BODY

No. Part Number Description
1. BN46I/13 Gasket, Pump
2. BN46I/14 Diaphragm, Pump (Clear)
3. 616-73002 O-Ring
4. BN46I/11 Check Valve (2)
5. BN34/125 Grommet (2)
6. BN46I/34 Diaphragm, Damper
7. BN46I/15 Diaphragm, Damper (Clear)
8. 616-73003 O-Ring
9. BN44/146 Filter, Fuel
10. B30/305 O-Ring, Hi Speed (2)
11. MD12/16 O-Ring, Low Speed
12. KV/10 O-Ring, Needle Valve
13. BN34/123 Gasket, Valve Body
14. BN34/107 Check Valve (Clear)
15. VM30/97 Pin, Arm
16. 730-03034 Spring, Arm 95 gram
17. BN38/534 Arm (Stainless)
18. BN44/145 Diaphragm assy., Main
NOTE: Kit contains parts 1 through 18
19. BN34/120-35 Screw w/ washers (4)
20. BN46I/xx Cover, Pump
21. BN46I/49 Body Assy., Pump
22. BN38I/40 Stop Screw, Idle
23. BN38/39 Washer, Aluminum (3)
24. BN38/344 Spring (2)
25. 999-904-006 Cap, Hi Speed Adjuster
26. 604-25017 Adjuster, Hi Speed
27. BN38/172 Washer, Aluminum (2)
28. BN38/343 Spring, Low Speed
29. BN38/477 Adjuster, Low Speed
30. N102.221-size Jet, Hi Speed
31. N100.606-size Jet, Low Speed
32. BV15/121-05-GG Screw
33. BN34/108-GG Plate, Valve
34. BN44/165 Valve Body Assy.
35. C5=0414-G Screw (2)
36. 786-35018-size Needle Valve Assy.
37. BN34/117-GG Plate, Needle Valve rtnr
38. CW2=0307-G Screw w Washer
39. C6=0308-G Screw
40. BN44/147 Cover (Stainless)
41. C2S=0514 Screw (4)
42. BN40I/22 Diaphragm, Acclr. Pump

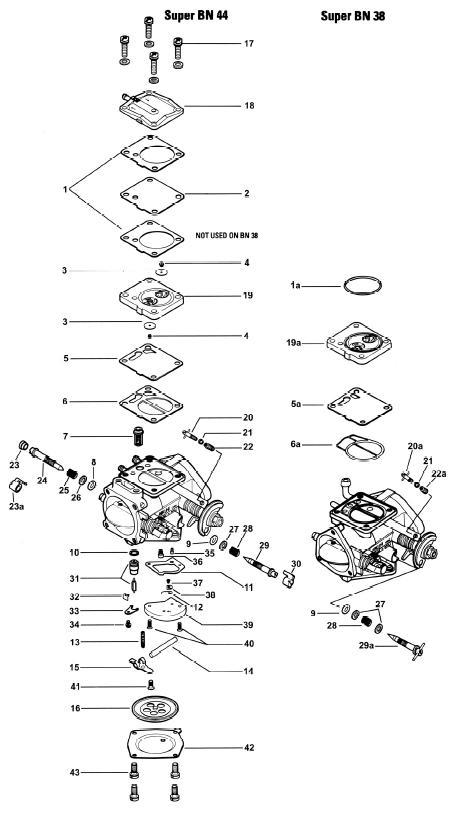

MIKUNI CARBURETOR PARTS
SUPER BN38 / BN44 / BN46

No. Part Number Description
1. BN38/547 Gasket, Pump (2)
2. 616-72001* O-Ring
3. BN34/97 Diaphragm, Pump (Clear)
4. BN34/125 Grommet, Check Valve (2, clear)
5. BN34/100** Diaphragm, Damper
5.a BN34/129* Diaphragm, Damper
6. BN34/101** Gasket, Damper
7. BN44/146 Filter
8. B30/305 O-Ring, Hi-Speed
9. MD12/16 O-Ring, Low Speed
10. KV/10 O-Ring, Needle Valve
11. BN34/123 Gasket, Valve Body
12. BN34/107 Check Valve (Clear)
13. 730-03027 Spring, Arm (115 grams)
14. VM30/97 Pin, Arm
15. BN38/534 Arm (Stainless)
16. BN44/145 Diaphragm Assembly
Note: Kit contains parts 1 through 16
17. BN34/120-30 Screw w/ washers, (4, Stainless)
18. BN34/95B Cover, Pump
19. BN34/98** Body Assembly, Pump
19.a BN34/128* Body Assembly, Pump
20. BN44/109** Stop Screw, Idle
20.a BN34/82* Stop Screw, Idle
21. BN38/39 Washer (Aluminum)
22. BN38/341** Spring, Idle
22.a BN38/344* Spring, Idle
23. B26/03** Cap
23.a BN44/118* Cap w/ Tab
24. 604-25017 Adjuster, Hi Speed
25. BN38/344 Spring, Hi Speed
26. BN38/39 Washer, Hi Speed (Aluminum)
27. BN38/172 Washer, Low Speed (Aluminum)
28. BN38/343 Spring, Low Speed
29. 604-26008** Adjuster, Low Speed
29.a BN38/477* Adjuster, Low Speed w/ Cross Bar
30. 990-904-006 Cap
31. 786-35015-size Needle Valve Assembly (Viton)
32. VM15/285 Spring Clip, Needle Valve
33. BN34/117-GG Plate, Needle Vavle Retainer
34. CW2=0307-G Screw w/ Washer
35. N100.606-size Jet, Low Speed
36. N102.221-size Jet, Hi Speed
37. BV15/121-05-GG Screw
38. BN34/108-GG Plate, Valve
39. BN44/165 Valve Body Assembly
40. C5=0414-G Screw (2 pcs)
41. C6=0308-G Screw
42. BN44/147 Cover (Stainless)
43. MCWS-0512 Screw w/ Washer (4, Stainless)
NOTE:
Parts marked w/ single asterisk (*) fit BN38 only.
Parts marked w/ double Asterisk (**) fit BN44 only.
